ggradar Example

Majid Zaremehrjardy

2023-11-09

Libraries and data setup

Create a test data…

library(ggradar)
library(tidyverse)

set.seed(123)

# Create data: note in High school for Jonathan:
data <- data.frame(
  month = rep(month.name, 3),
  p_value = rnorm(36, mean = 0.2, sd = 0.1),
  group = c(rep('A', 12), rep('B', 12), rep('C', 12))
)

Data setup part II

data$month <- factor(data$month, levels = month.name)
max_number <- ceiling(max(data$p_value, na.rm = T) * 10) / 10

data <- data %>%
  pivot_wider(
    names_from = month,
    values_from = p_value
  )

data <- rbind(data, c("p-value = 0.05", rep(0.05, 12)))
data <-  data %>% mutate_at(.vars = 2:13, .funs = as.numeric)

ggradar code

1. Code

g <- ggradar(data,
        grid.max = max_number,
        grid.mid = max_number / 2,
        gridline.mid.colour = "grey",
        gridline.max.linetype = "solid",
        legend.position = "right",
        values.radar = c(0, max_number/2, max_number),
        group.point.size = NA
        )

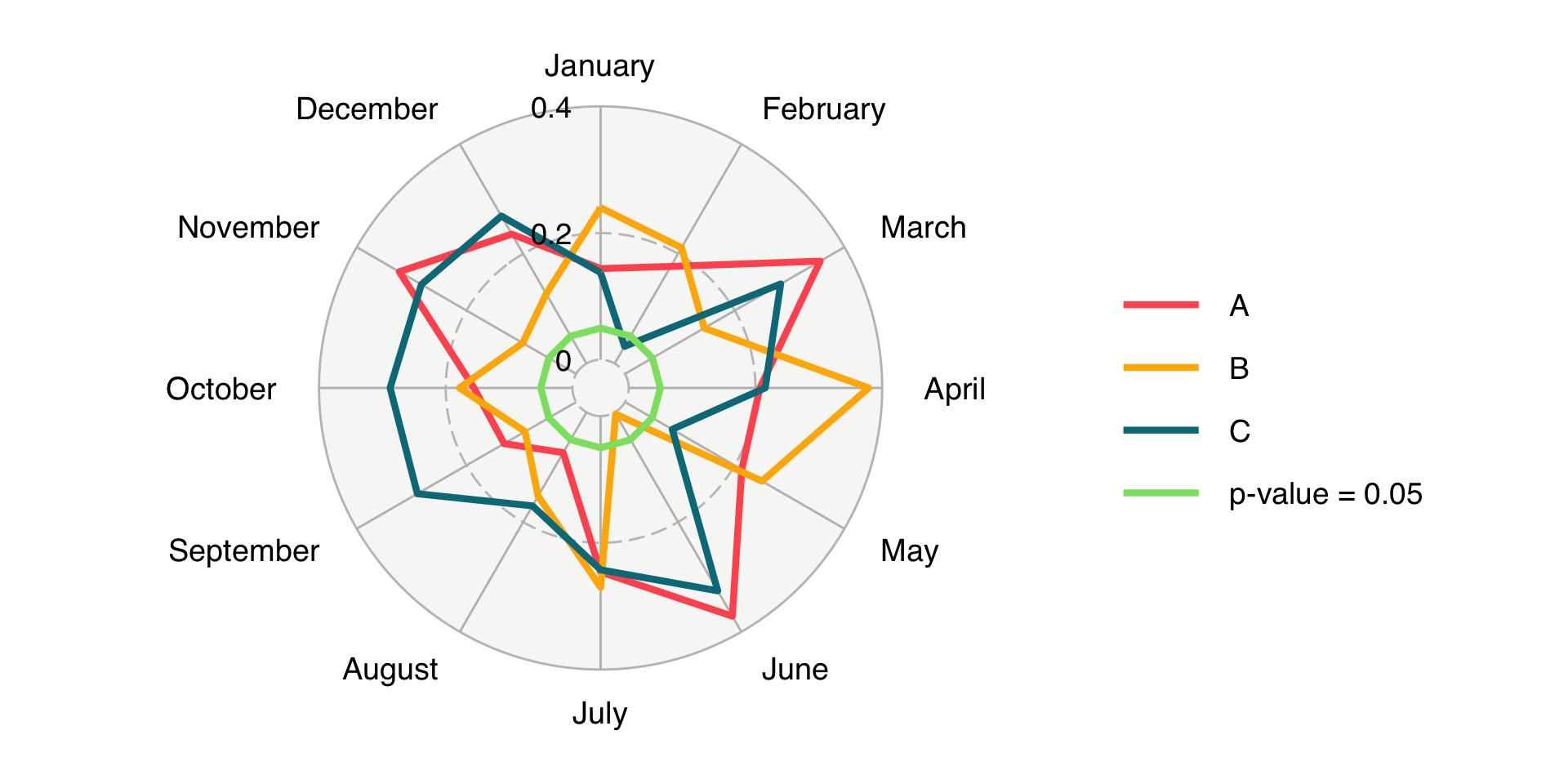

2. Print the plot

plot(g)
